More:
The grapple tines on the BOG SINGLE and BOG DUAL are made of 3/8" steel. The tines on the BOG DUAL X are made of 1/2" steel.
Technical Specs:
|
Model
|
Width in Inches
|
Weight in Lbs.
|
|
BOG SINGLE
|
48 to 60
|
143
|
|
BOG DUAL
|
60 to 72
|
230
|
|
BOG DUAL X
|
72 to 84
|
410
|
Extended Information:
Hi, I'm Ted from Everything Attachments.

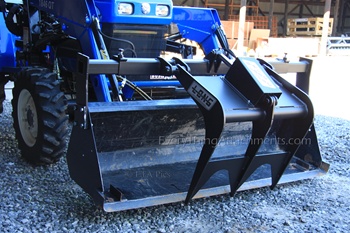

We're here today to show you the WR Long brand of grapple that can be added to your standard bucket. The only thing you're gonna need to operate this is the hydraulic controls, and they also offer a third function hydraulic kit for just about every tractor on the market.
So this particular grapple with the single cylinder is meant to be used on buckets from 48 inches to 60 inches in length. This is adjustable and then you will only have to drill 4 holes in each side of your bucket, and we're gonna spin that around and show it to you.
So once you pile your bucket full of loose brush, whatever it is that you're loading, you're able to hydraulically put this grapple down and hold it in so you can transfer it or wherever you're going without it falling out. Especially when you're doing a lot of, after you've cut trees and got a lot of brush and stuff.
So turn me around here Kevin. Stop right there. Alright, here on the side you've got your 4 bolts, you also have some plates that go on the inside of your bucket to give you some strength instead of just putting 4 bolts. Most loader buckets in this size are gonna be really thin there on the sides, so you have a full plate, 3/8 in thickness that goes on the inside of your bucket and the outside of your bucket. Just making it stronger and giving it some strength there. Stroll me on around.
On the back side you'll see that it's got the single cylinder here, your hydraulic connections which will hook to your third function remote valve kit. If you don't want to use a third function remote valve kit, if you happen to have a remote valve on the back of your tractor, you could run longer hydraulic lines and use your remote on the tractor also.
But this is a heavy duty grapple for a 48-60 inch bucket. They also make a twin grapple with 2 cylinders that goes on a 60 inch to an 84 inch bucket.
We hope you'll make all your purchases at Everything Attachments, give us a call or an e-mail and we'll help size these for your tractor and help you with any hydraulics or any other questions you may need.
|
