W R Long Open Bottom Grapple 1
W R Long Open Bottom Grapple 1 Full size Tractor Loader
Long Open Bottom Grapple 1

Alternative Views:

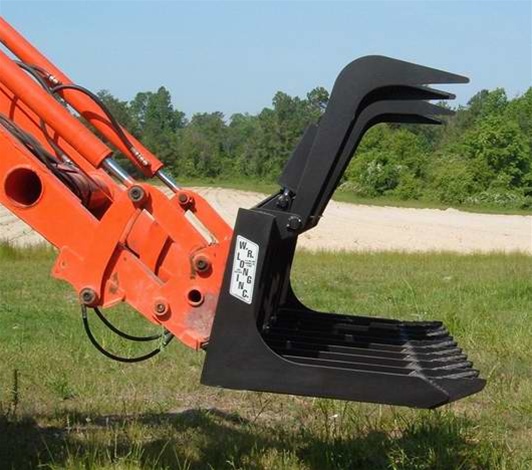

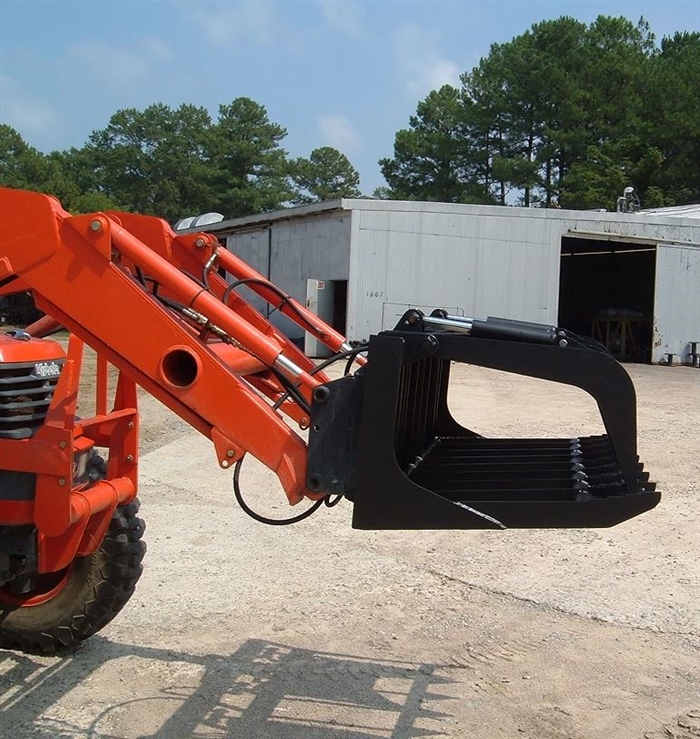

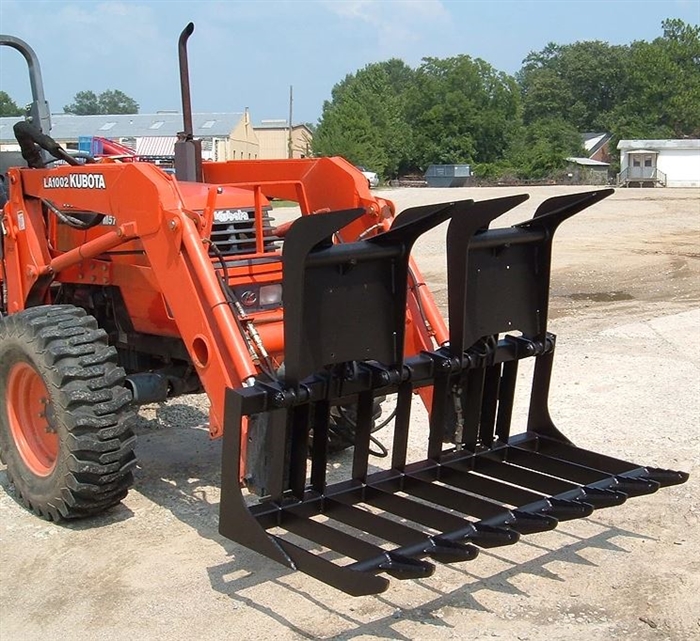

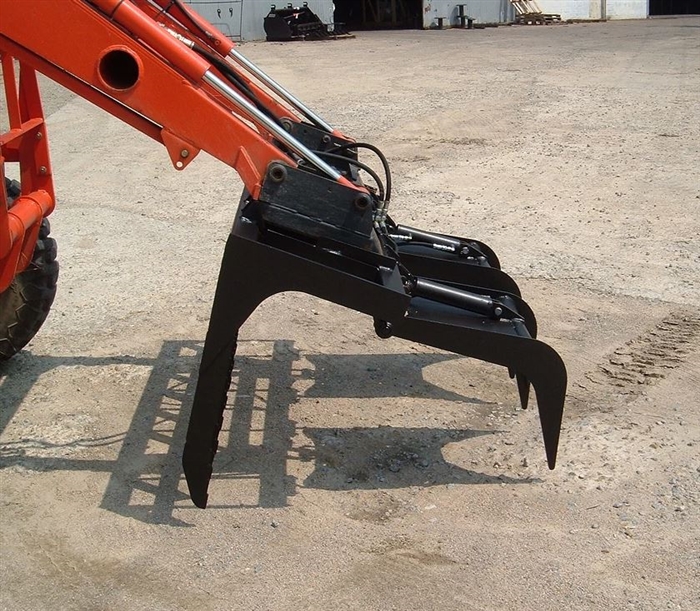

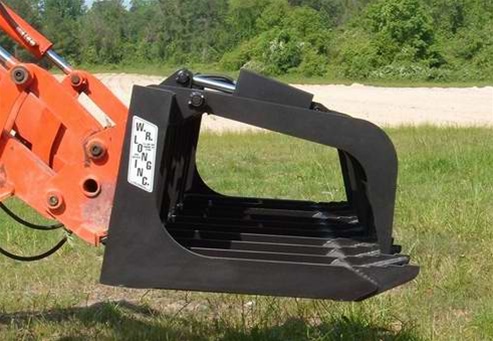

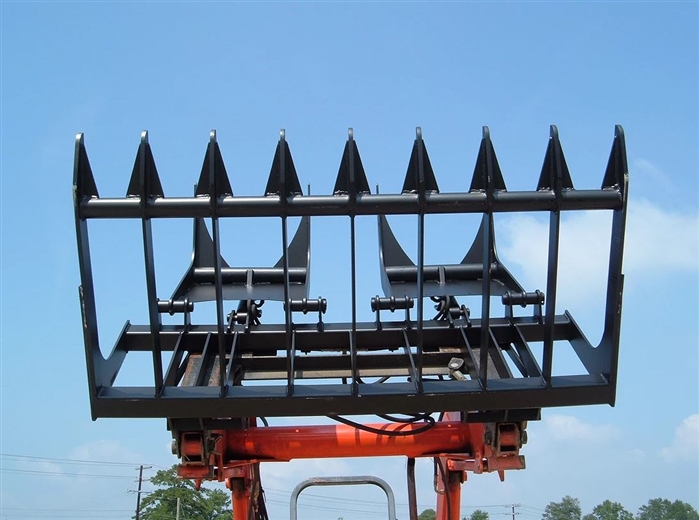

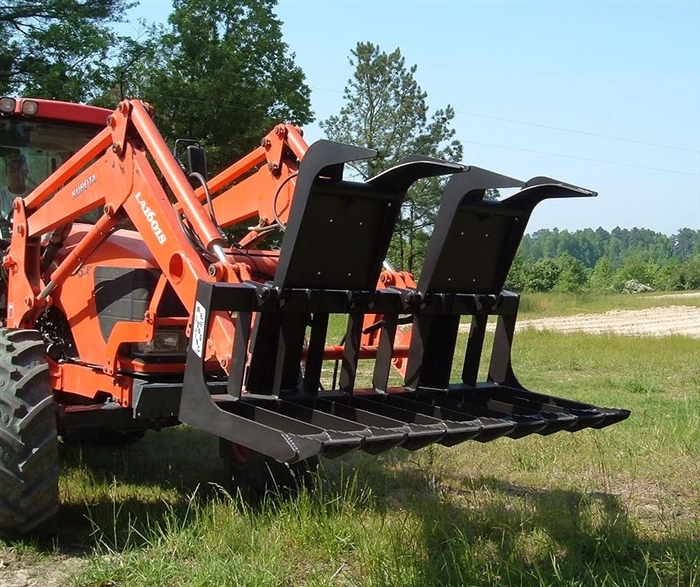

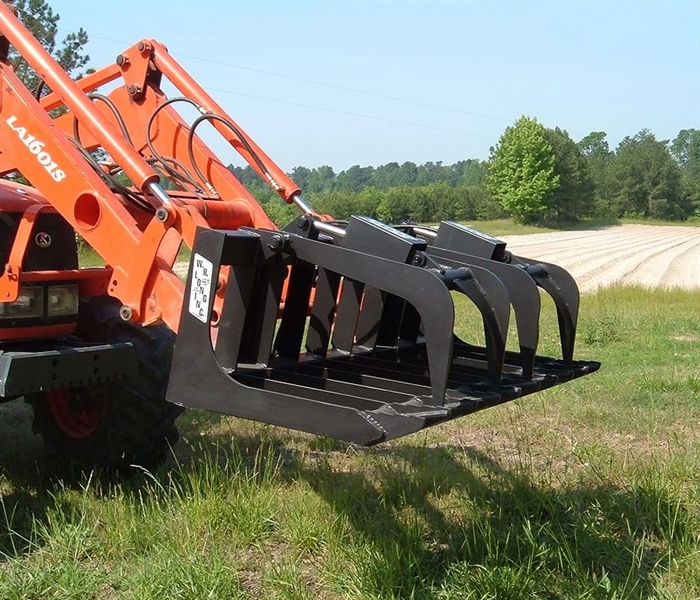

W.R. Long Open Bottom Grapple 1

The Open Bottom Grapple OBG-1 is for Tractor Loaders with lift capacities to 3,500 pounds and skid steers with lift capacities to 2,500 pounds and comes in widths from 64 inches to 80 inches. Ideal for tree service, cleanup of storm debris, logs or fire wood and material you need to secure to move.


  • Light weight and strong
  • Heat treated bushings with stress proof pins
  • Open bottom grapple teeth are made out of high carbon steel
  • Grapple tines open to 47 inches
  • The 48" OBG-2 has one grapple all others have 2 grapples.
  • Optional teeth are available
  • Additional rails on bottom available for smaller materials
  • Space between tines is 8" center to center
  • Tines are 3" wide x 3/8" thick
  • Tines can be mounted with 4" center to center for $300 extra (Call to add this option)
  • Includes hoses and 1/2" AG couplers, add $75 for FF couplers
  • Free shipping within 1,000 miles!

Width in Inches Number of Grapples Weight in Pounds
OBG1 64 2 656
OBG1 72 2 685
OBG1 80 2 735
WRLong
W R Long Open Bottom Grapple 1, available in 64, 72, and 80 inches, up to 3,500 lbs. capacity. Free shipping within 1,000 miles!

Item# Item Name Our Price Qty Add
WRL-OBG1-64 W.R. Long Open Bottom Grapple 1 64
$4,324.00
WRL-OBG1-72 W.R. Long Open Bottom Grapple 1 72
$4,558.40
WRL-OBG1-80 W.R. Long Open Bottom Grapple 1 80
$4,799.20
Check the items you wish to purchase, then click

Average Customer Review: Average Customer Review: 3 of 5 3 of 5 Total Reviews: 2 Write a review.

  0 of 0 people found the following review helpful:

1 of 5 W R Long Open Bottom Grapple 1 72 4" ctr to ctr January 23, 2024
Reviewer: DEBBIE HOLMAN from FITZWILLIAM, NH United States
We paid $300. 00 extra for the 4" center to center option...did someone else get our order or is it still on the premises?  The one we rec'd is 8", not 4" as ordered and paid for.  Please advise.

Was this review helpful to you?

  1 of 1 people found the following review helpful:

5 of 5 Grapple September 24, 2020
Reviewer: Randy Crochet from Clinton , LA United States
The grapple was delivered in two or three days. The grapple is very nice and well made. This is a Great product

Was this review helpful to you?
