Front End Loader For Kubota L Series Tractors

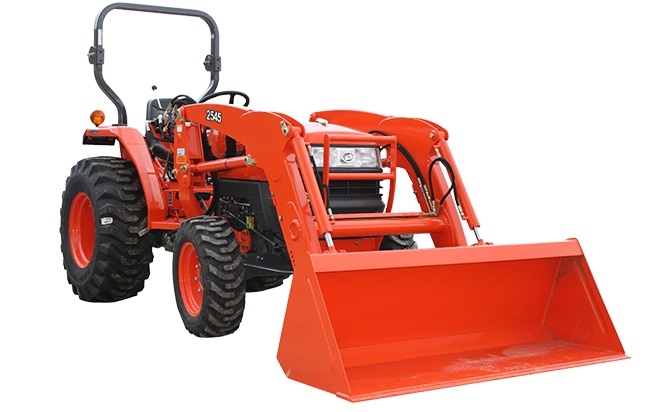

The 5605 front end loader from Ansung is designed to fit Kubota L4802, L4701, L4600, L4400, L3130, L3430, L3830 tractors. The loader comes with most hydraulic lines in place, so installation is a breeze and only takes common tools. The maximum lift height is 104.6" and can lift capacity up to 1,830 lbs. A 72" bucket comes with the 4705QB loader and it attaches to the front of the loader with a universal quick attach mount like most new tractors. The loader itself can be easily removed with stands and pins designed to make the job easy.

Comes complete with hoses, mounting brackets, joystick valve, and grille guard.
72" Universal Skid Steer quick attach(USSQA) bucket is included.
Strong, rigid subframe mount is very similar to OEM loader.
Mounts install to existing frame holes(around 10 bolts per side), so no drilling or tapping is necessary.
All pivot pins are center drilled and greasable.
Hard lines on the loader arms for a clean look!
Comes with quick disconnect hoses to connect to the factory valve ports.
Easy loader removal with dual stands, pins and QD hydraulic couplers.
Easy plug and play installation.
1,010 pound shipping weight includes grill guard and pallet.
Manufactured by Ansung in S. Korea.
View Parts Manual
Free shipping within 1,000 miles.

TRACTOR MODEL	Standard L Series
A. Maximum Lift Height	104.6"
B. Clearance w/Attachment Level	100.6"
C. Clearance w/Attachment Dumped	82.5"
D. Reach @ Maximum Height	19.8"
E. Maximum Dump Angle	48°
F. Reach w/Attachment on Ground	65.6°
G. Attachment Rollback Angle	26°
H. Digging Depth Below Grade	5.0"
J. Overall Height in Carry Position	48.2"
L. Depth of Attachment (to pivot pin)	23.2"
M. Height of Attachment	22.2"
N. Depth of Attachment (to pivot point)	26.3"
Lift Capacity to Full Height @ Pivot Pin	1,803 lbs
Breakout Force @ Ground Level, Pivot Pin	2,950lbs
Relief Valve Setting (Loader Control Valve)	2490 psi. hyd
Lift Cylinder	2.36" x 17.9"
Bucket Cylinder	1.97" x 17.9"
Bucket Size	72"

Our Price: $5,886.00

Product Code: ANS-4705QB-LDR

Description

Front end loader for Kubota Standard L Series tractors. Includes 72" Universal Quick Attach Bucket Free shipping within 1,000 miles!
