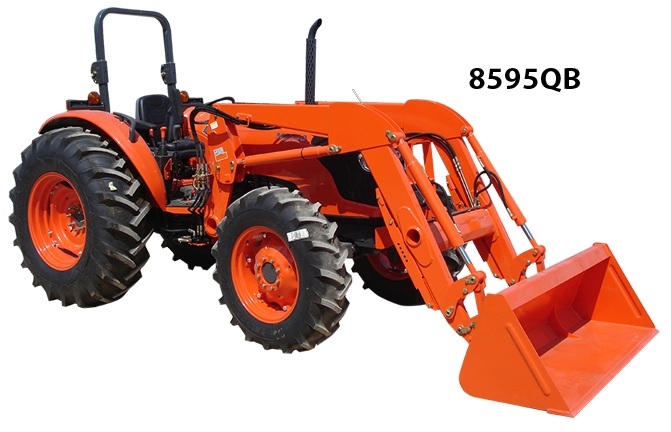

Front End Loader For Kubota M5 Series Tractors

The 8595M front end loader from Ansung is designed to fit Kubota M5-091 and M5-111 tractors. The loader comes with most hydraulic lines in place, so installation is a breeze and only takes common tools. The maximum lift height is 133.8" and can lift capacity up to 3,000 lbs. An 84" bucket comes with the 8595M loader and it attaches to the front of the loader with a universal quick attach mount like most new tractors. The loader itself can be easily removed with stands and pins designed to make the job easy.

Comes complete with hoses, mounting brackets, joystick valve, and grille guard.
84" Universal Skid Steer quick attach(USSQA) bucket is included.
Strong, rigid subframe mount is very similar to OEM loader.
Mounts install to existing frame holes(around 10 bolts per side), so no drilling or tapping is necessary.
All pivot pins are center drilled and greasable.
Hard lines on the loader arms for a clean look!
Comes with quick disconnect hoses to connect to the factory valve ports.
Easy loader removal with dual stands, pins and QD hydraulic couplers.
Easy plug and play installation.
Manufactured by Ansung in S. Korea.
View Parts Manual
Free shipping within 1,000 miles.

TRACTOR MODEL	Standard L Series
A. Maximum Lift Height	133.8"
B. Clearance w/Attachment Level	121.3"
C. Clearance w/Attachment Dumped	99.8"
D. Reach @ Maximum Height	24.6"
E. Maximum Dump Angle	57°
F. Reach w/Attachment on Ground	78.7°
G. Attachment Rollback Angle	43°
H. Digging Depth Below Grade	7.7"
J. Overall Height in Carry Position	64.1"
L. Depth of Attachment (to pivot pin)	26.5"
M. Height of Attachment	26"
N. Depth of Attachment (to pivot point)	32.2"
Lift Capacity to Full Height @ Pivot Pin	3,000 lbs
Breakout Force @ Ground Level, Pivot Pin	5,500
Relief Valve Setting (Loader Control Valve)	2,873 psi. hyd
Lift Cylinder	2.873" x 21.2"
Bucket Cylinder	2.76" x 18.1"
Bucket Size	84"

Our Price: $8,802.00

Product Code: ANS-8595M-LDR

Description

Front end loader for Kubota Standard L Series tractors. Includes 84" Universal Quick Attach Bucket Free shipping within 1,000 miles!
