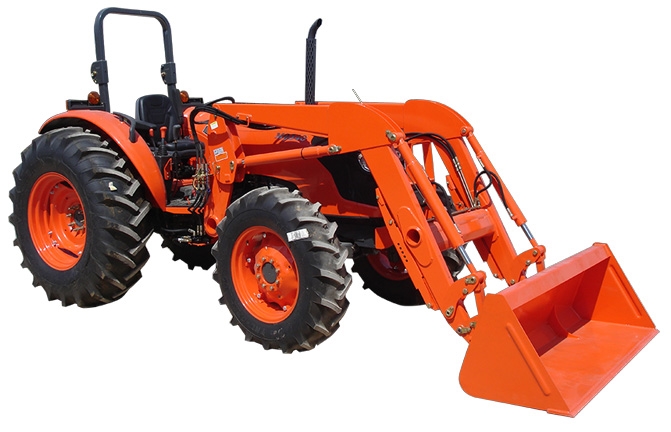

Front End Loader For Kubota M5660SU

The 5605 front end loader from Ansung is designed to fit Kubota M5660SU tractors. The loader comes with most hydraulic lines in place, so installation is a breeze and only takes common tools. The maximum lift height is 101.7" and can lift capacity up to 1205 lbs. A 66" bucket comes with the 2545C loader and it attaches to the front of the loader with a universal quick attach mount like most new tractors. The loader itself can be easily removed with stands and pins designed to make the job easy.

Comes complete with hoses, mounting brackets, joystick valve, and grille guard.
60" Universal Skid Steer quick attach(USSQA) bucket is included.
Strong, rigid subframe mount is very similar to OEM loader.
Mounts install to existing frame holes(around 10 bolts per side), so no drilling or tapping is necessary.
All pivot pins are center drilled and greasable.
Hard lines on the loader arms for a clean look!
Comes with quick disconnect hoses to connect to the factory valve ports.
Easy loader removal with dual stands, pins and QD hydraulic couplers.
Easy plug and play installation.
1,010 pound shipping weight includes grill guard and pallet.
Manufactured by Ansung in S. Korea.
View Parts Manual
Free shipping within 1,000 miles.

TRACTOR MODEL	M5660SU
A. Maximum Lift Height	101.7"
B. Clearance w/Attachment Level	95.5"
C. Clearance w/Attachment Dumped	79.7"
D. Reach @ Maximum Height	19.7"
E. Maximum Dump Angle	42°
F. Reach w/Attachment on Ground	59.8°
G. Attachment Rollback Angle	25°
H. Digging Depth Below Grade	4.4"
J. Overall Height in Carry Position	45.7"
L. Depth of Attachment (to pivot pin)	23.2"
M. Height of Attachment	22.2"
N. Depth of Attachment (to pivot point)	26.3"
Lift Capacity to Full Height @ Pivot Pin	1205 lbs
Breakout Force @ Ground Level, Pivot Pin	2460 lbs
Relief Valve Setting (Loader Control Valve)	2490 psi. hyd
Lift Cylinder	1.97" x 17.9"
Bucket Cylinder	1.97" x 20.7"
Bucket Size	60"

Our Price: $6,763.50

Product Code: ANS-5605-LDR

Description

Front end loader for Kubota M5660SU tractor. Includes 60" Universal Quick Attach Bucket Free shipping within 1,000 miles!
