Shaver HD-10 Tractor Post Driver - 3 point Hitch Category 1
Shaver Post Driver - Model HD-10 Tractor 3pt Hitch Hydraulic Post Driver, category 2
Shaver Model HD-10 Tractor 3pt Hitch Hydraulic Post Driver

Alternative Views:

Shaver HD-10 Post Driver - 3 point Hitch Category 1

This tractor mounted post driver delivers 71,500 lbs of pressure on it's full down stroke! Made to drive up to ten foot posts into the ground in less than 20 seconds, the Shaver HD-10 Post Driver is a must have attachment if you are putting up or maintaining a lot of fence line.

This model Shaver Post Driver is designed to fit your Tractor 3 point hitch, category 1. Shaver Drivers are fast, powerful, rugged and reliable. Everything Attachments believes that "Made in the USA" Shaver post drivers are known as the world's finest. They're built to heavier standards than the job requires. These tractor 3 point post drivers function using only six moving parts. The Shaver post driver machines perform year after year to tackle all your fencing needs.

All post hole drivers come with 1 stand, which is the industry standard, but at Everything Attachments, we include a second stand because we feel it has less of a chance of falling over with two legs.

Hoses are included with all post drivers. Couplers not included.
Spring loaded retractable post holder is included with all models.

*ask about installation requirements(welding/drilling) if adding optional pilot auger*

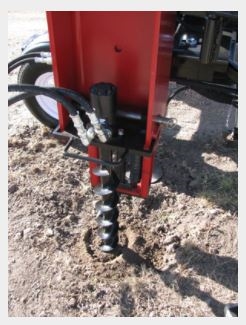

**NEWEST VERSION OF PILOT AUGER ASSEMBLY SHOWN IN SECOND PIC**
Our Price: $8,145.00



Product Code: SH-HD-10

Choose Tilt Type

Post Driver Tilt*:
4" Pilot Auger

Optional 4" Pilot Auger*:
Plug Package

Plug Package for tractors with closed center hydraulics [Add $156.25]


Description

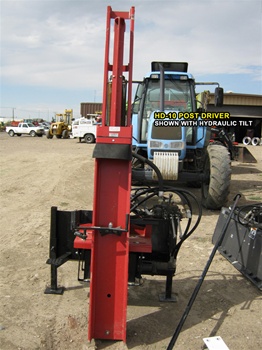

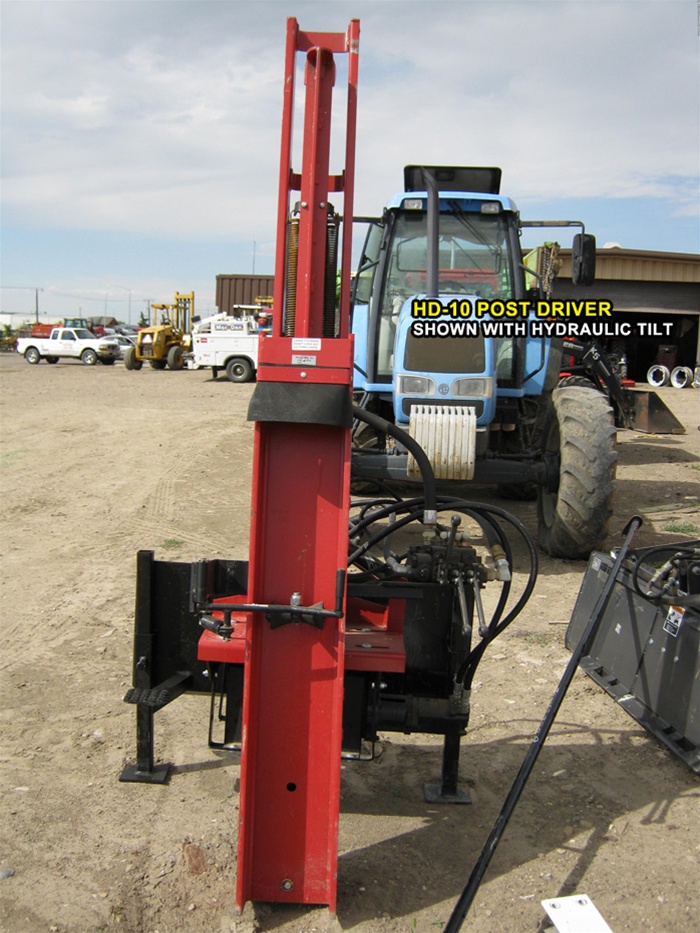

The HD-10 Shaver post driver shown above can tilt of 15 degrees either direction to make sure you drive your posts straight, and delivers 71,500 lbs at full stroke force and can drive 4-5 inch posts in less than 15 seconds. All models take just a few minutes to mount or detach. All work with any 3-point hitch, with or without Quick-Tach.
More
Features and
Specifictions		 HD-8 HD-10 HD-12H
Impact at Full Stroke 30,000 lbs. 71,500 lbs. 100,000 lbs.
Effective Weight of
Spring Powered Hammer		 360 lbs. 725 lbs. 1,100 lbs.
Drives a 4-5" post in as little as 10 seconsds.
Operating Distance
Above Ground		 53-126" 53-128" 53-128"
Operating distance above ground is adjustable on all models.
Post Size:
Maximum Width
Maximum Length		 Drives steel, wood posts, railroad ties
7 1/8"
10 feet		 8 3/4"
10 feet		 10 7/8"
10 feet
No. of Block Studs 4 4 6
No. of Nyrim Blocks 4 4 6
Tilt:
With Hydraulic Base
With Manual Base Plate		 Front-back/side-side
15°/15°
15°/15°		 Front-back/side-side
15°/15°
15°/15°

Front-back/side-side
20°/25°
N/A

Hydraulic Base Plate and
Manal Stabilizer Pad
pkg.		 optional optional optional
Category I, II, or III
Assembly		 category I category I category II
Adjustable with all models 25.0" - 40.5"
Mounting front or rear or skid ldr. front or rear or skid ldr. rear or skid ldr.
Whicever you shoose, it takes just a few minutes to mount or detach. Works
with any 3-point hitch, with or without Quick-Tach
Hydraulic Requirements 3-4 GPM/1,500 PSI 12 GPM/1,500 PSI 15 GPM/2,000 PSI
Shipping Weight:
With Hydraulic Base
With Manual Base Plate		 (Weights listed are approximate)
486 lbs.
438 lbs.		 714 lbs.
694 lbs.		 957 lbs.
N/A

Average Customer Review: Average Customer Review: 4.5 of 5 4.5 of 5 Total Reviews: 8 Write a review.

  0 of 0 people found the following review helpful:

4 of 5 May 22, 2022
Reviewer: Kody Giacomo from Mount Vernon, IL United States
Drives post very fast. The manual adjust cranks are very hard to turn. The one was un turntable  so we used the tractor drag link to adjust it.

Was this review helpful to you?

  0 of 0 people found the following review helpful:

3 of 5 Non-standard 3-point hitch, leaky hydraulics March 29, 2021
Reviewer: Matthew N. from TN United States
The mounting information says it works with "any 3-point hitch, with or without Quick-Tach". However, I found this not to be true.

When I emailed about my quick hitch not connecting due to the mounting legs of the 3-point adapter on the post driver being in the way, I was told that the post driver was not quick-hitch compatible.

Also, the 3-point mounting plate sold through EA is not the same one manufactured by Shaver. The distributor makes their own, for some reason.

Finally, the top cap of the hydraulic cylinder leaks to the point to where there's almost a constant drip.

Overall, I was missing hardware, have leaking hydraulics, and a 3 point mounting plate that isn't quick hitch compatible. The unit drives posts just fine, but for the money, I expected more.

Was this review helpful to you?

  0 of 0 people found the following review helpful:

5 of 5 Excellent service December 1, 2020
Reviewer: Robert Hardin from Shelbyville, KY United States
Great to work with.

Was this review helpful to you?

  0 of 0 people found the following review helpful:

5 of 5 HD 10 Post driver October 9, 2020
Reviewer: CJ Gallen from Lenox, MO United States
great customer service and communications. Fast shipment, excellent quality, easy to follow assembly directions.

Was this review helpful to you?

  0 of 0 people found the following review helpful:

3 of 5 Great Service on Questionable Product September 9, 2020
Reviewer: Dave Johnson from Center Cross, VA United States
My experience was with Jeremy.
He’s very professional and when things went bad he stuck with it and me until we finally got the situation resolved! He diffidently went above and beyond.
