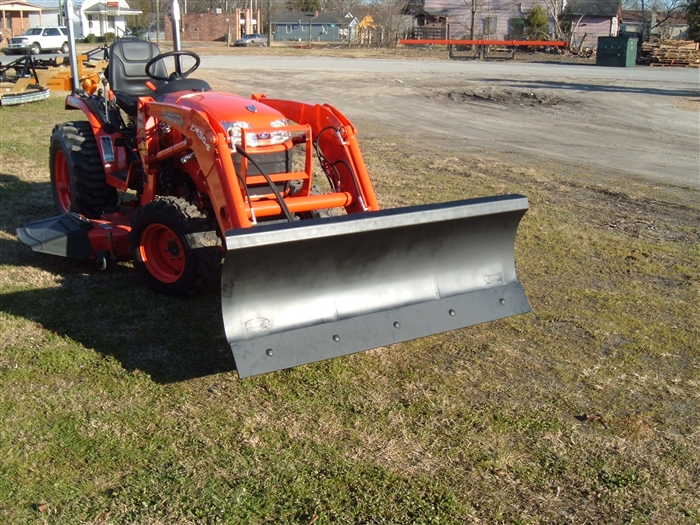

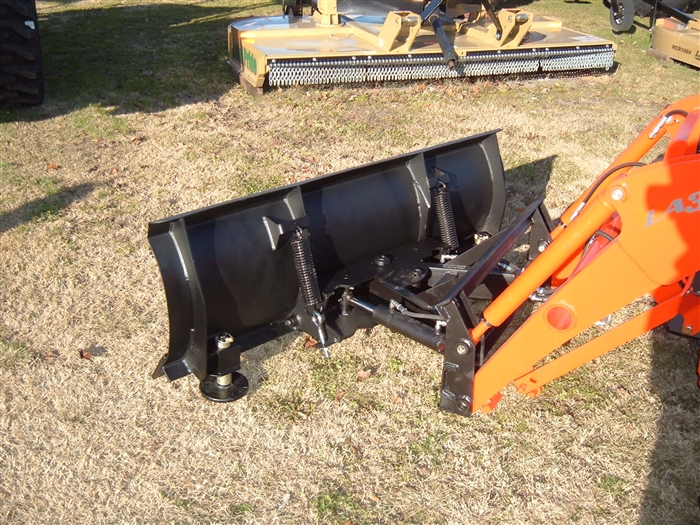

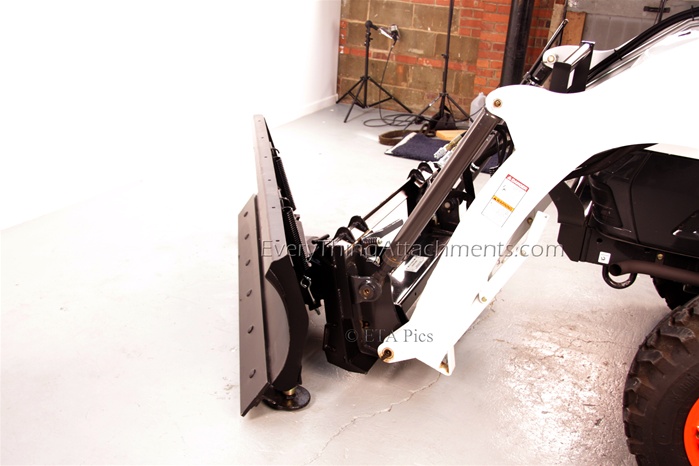

W.R. Long Front Blade for Tractors and Subcompact Tractors Up To 50HP
The Front Blade is for Subcompact and Compact Tractors up to 50 hp and is used for pushing snow, sand, dirt, manure, gravel, etc. We can build your front blade with most any type quick attach or pin on connection for no additional charge.
The Front Blade comes in 60", 72", and 84" widths and angles up to 30 degrees to the right or left. A manual front blade is available with 5 positions; straight, 15 degrees left or right and 30 degrees left or right. When the blade is angled to 30 degrees the 60" blade has a usable width of 52", the 72" blade has a usable width of 62" and the 84" blade has a usable width of 73".

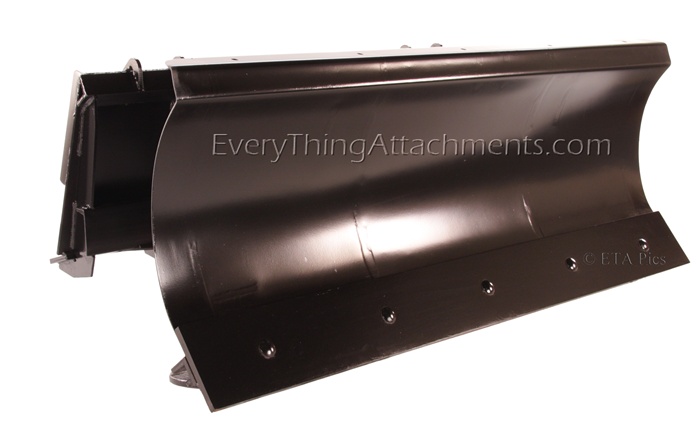

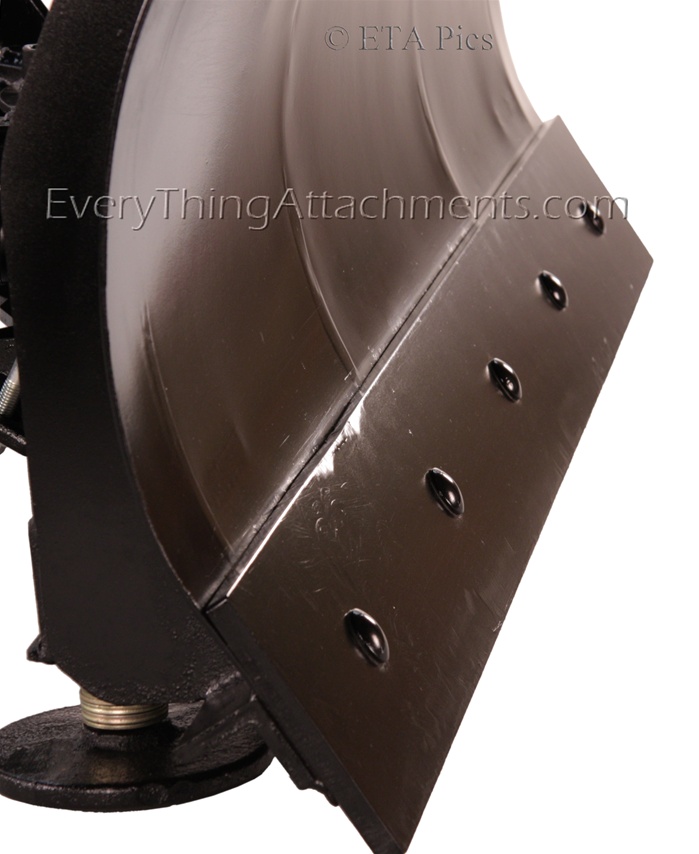

- Replaceable cutting edge 1/2" thick by 6" wide and reversible

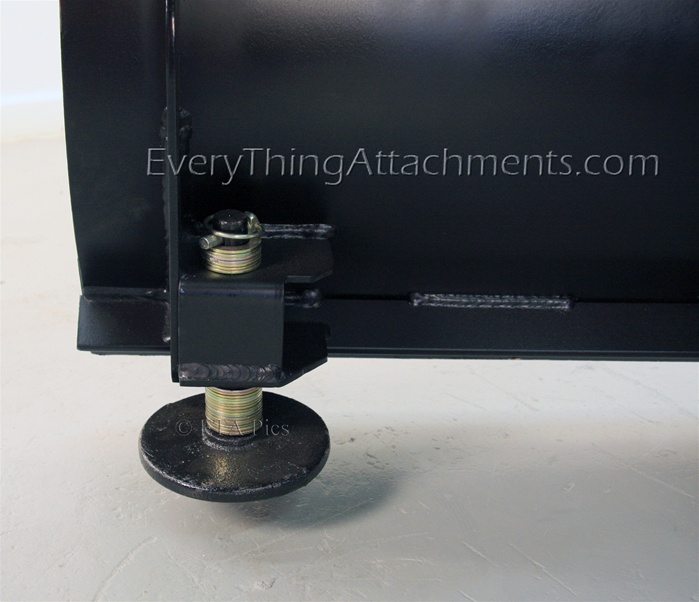

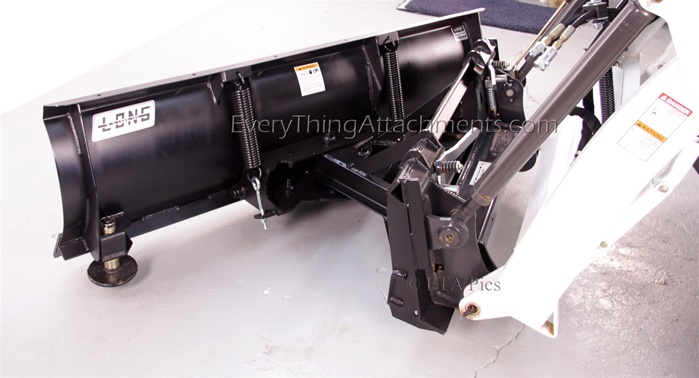

- Skid shoes prevent gouging by maintaining the blade at a preset height.
- Blade height is approximately 22"
- 10 Gauge Steel

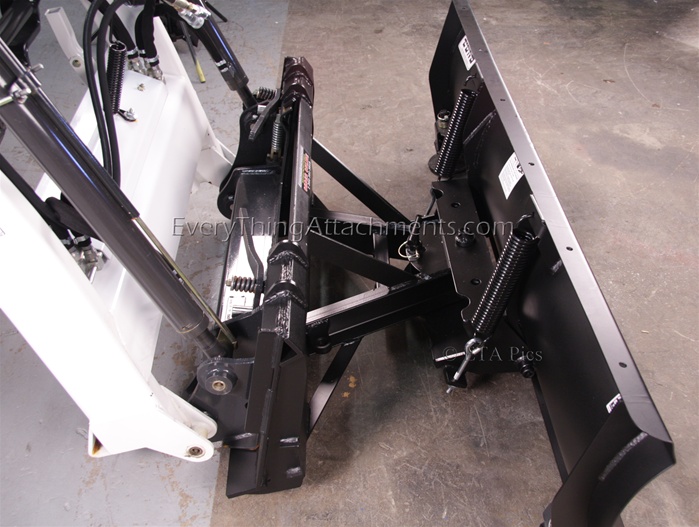

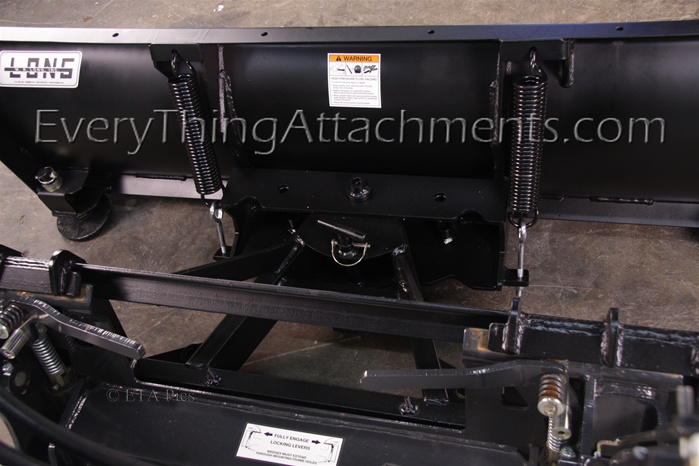

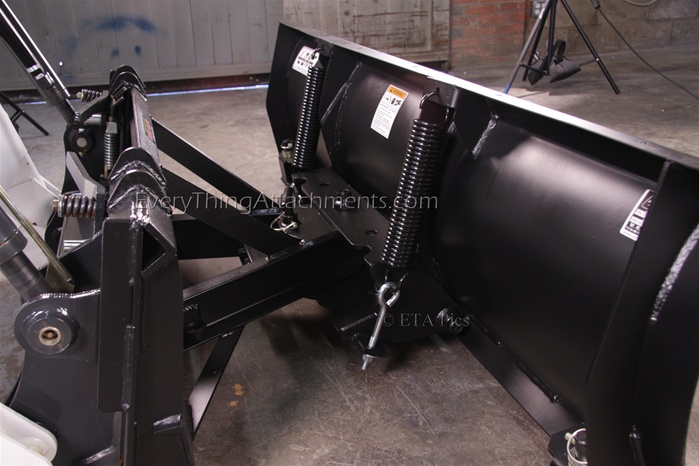

- Spring trip blade design so that blade pivots when it hits an obstruction.
- Radius dozer cutting edge available.
- Polyurethane cutting edge available for snow removal.

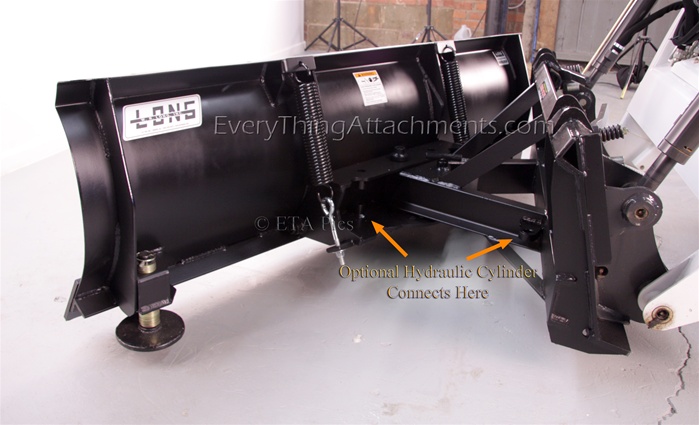

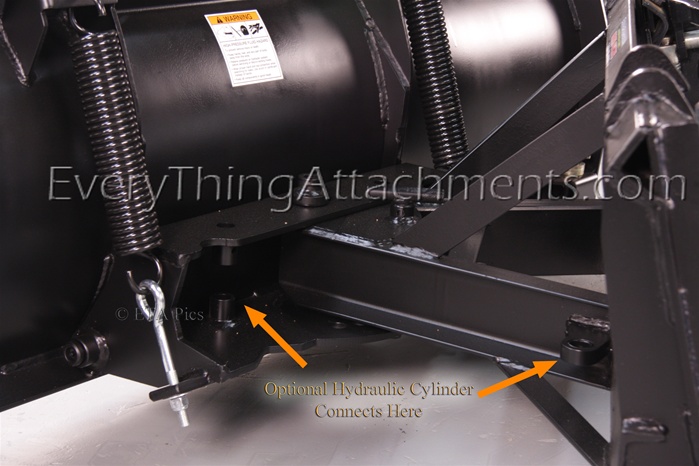

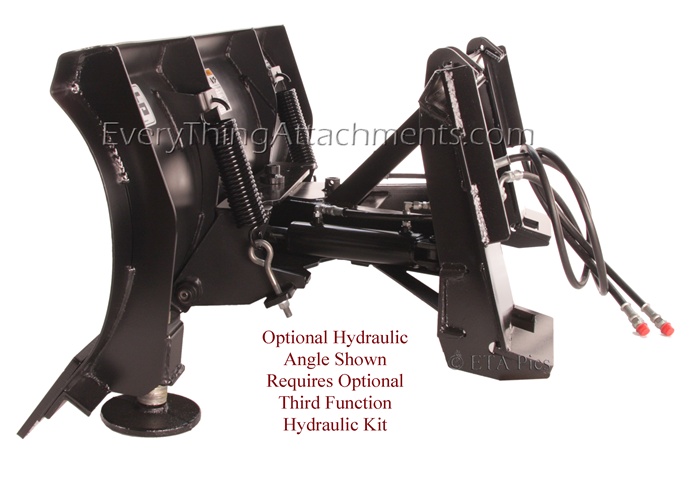

- Easily add cylinders and hoses to manual blade to convert to hydraulic blade.
- Free shipping within 1,000 miles!
If you also want an optional poly edge on this scrape blade, enter the number of feet beside the poly edge option below, this will include the mounting hardware required and the bolts.
|
Model
|
Width at 30 Degrees
|
Weight in Pounds
|
|
FBM 60
|
52"
|
320
|
|
FBM 72
|
62"
|
345
|
|
FBM 84
|
73"
|
380
|
|
FBM 96
|
83"
|
405
|
