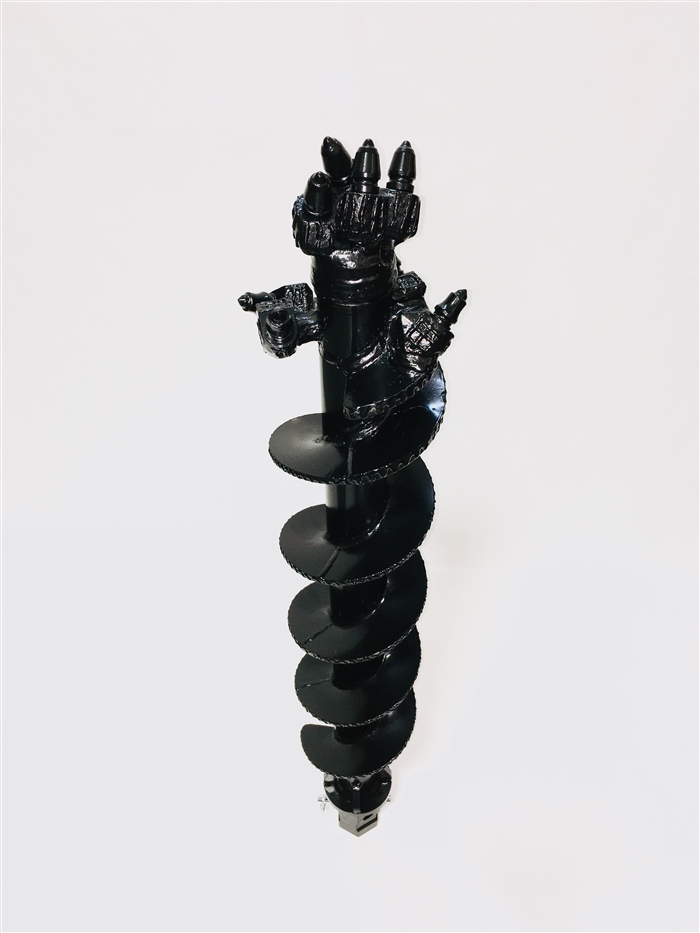

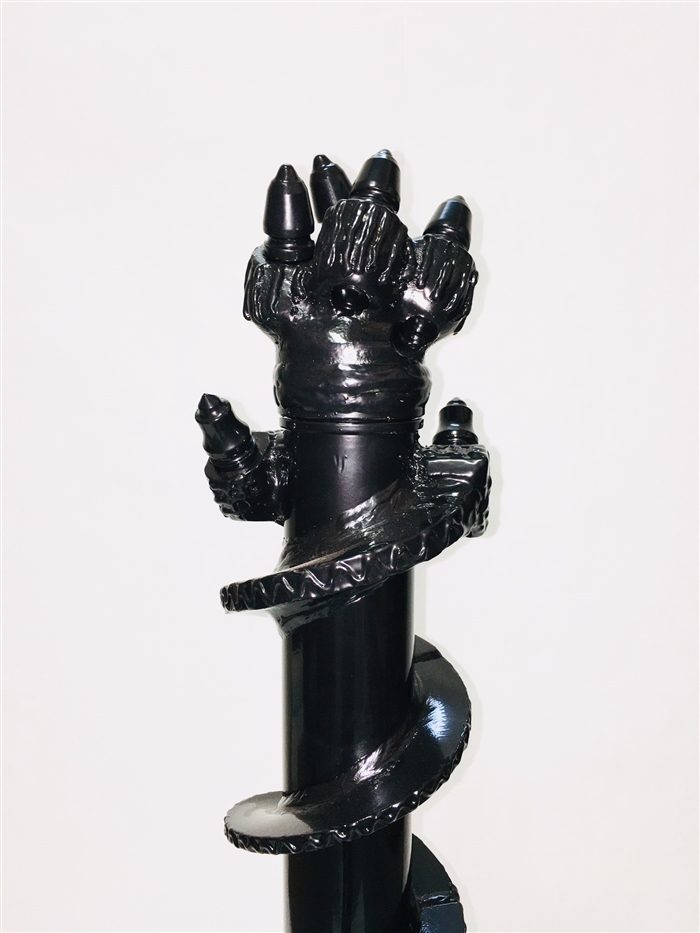

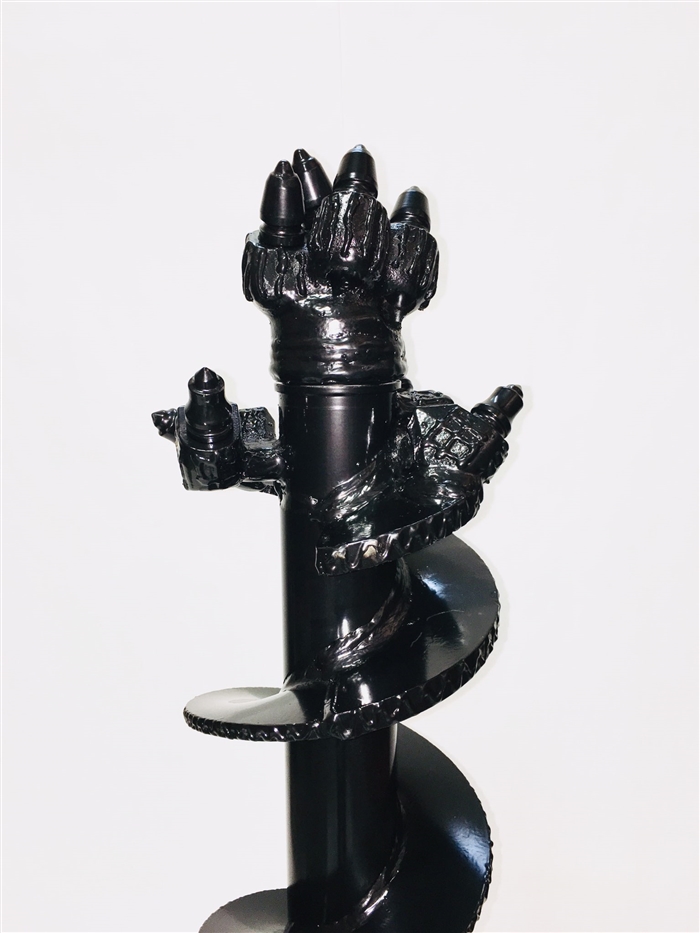

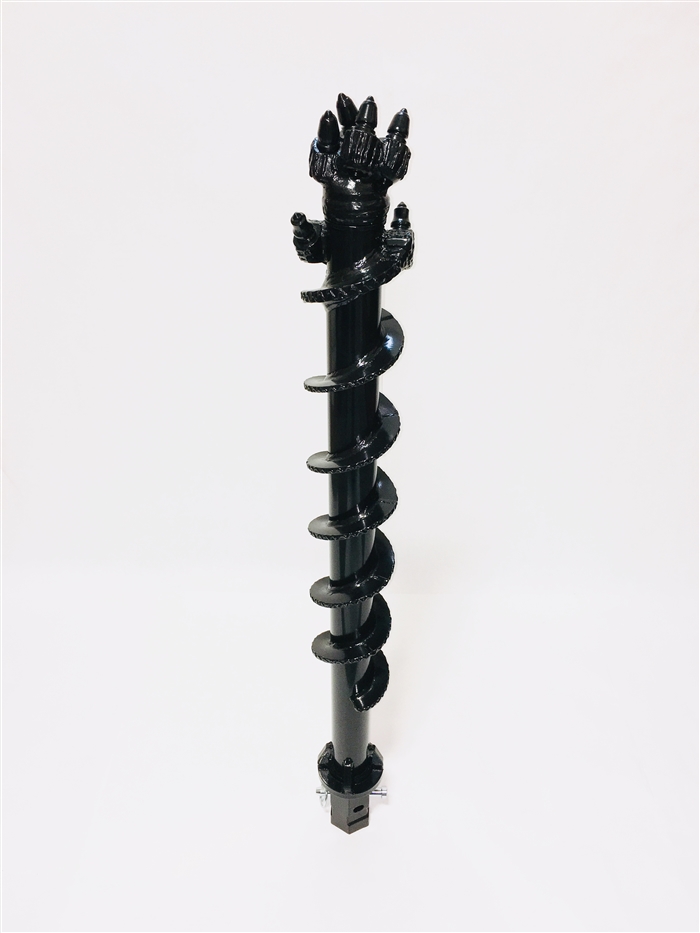

DR6 - Dedicated Rock Auger Bits

Digga’s DR6 AUGER features rotating rock picks and is specially designed for drilling from soft fracturable rock to very hard rock. DR6 Auger also feature short flighting to encourage regular spoil removal, allowing cool air to enter the hole and facilitate regular inspection of Carbide Bullet Teeth.

specifications
Drilling conditions	Dedicated Rock

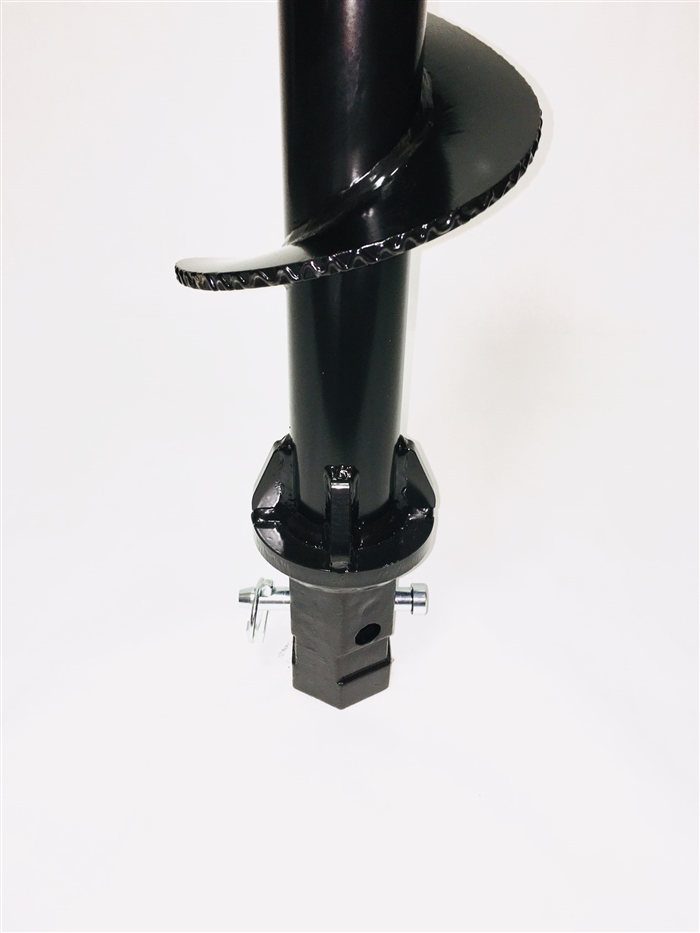

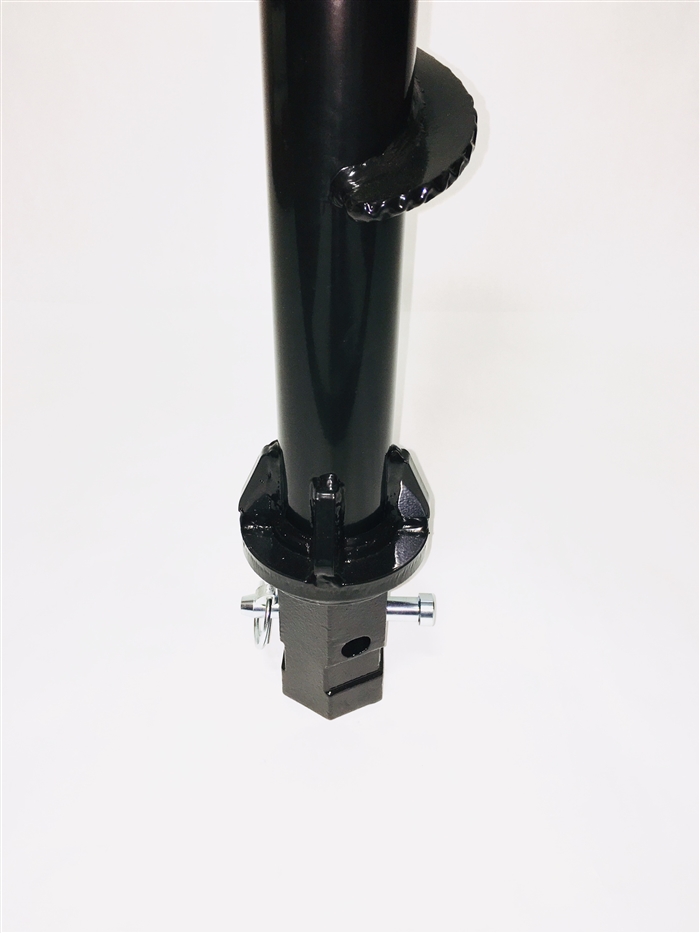

Hub	2.5" Hex
Optional Hub	2" Hex
Overall length	60"
Pipe	3" - 5.5"
Flights (lead)	13/16"
Flights (carry)	5/8"
Teeth	3/4" Rock Pick
Pilot	RPT
Max size	36"
Ideal drives	4dd-7dd
Optimum drilling speeds
Earth	N / A
Clay	N / A
Shale (fracturable rock)	25-45
Heavy rock	10-25
Auger features	Double start, single carry flight configuration. Shallow flight pitch for max spoil removal. Short flighted augers, encourages regular removal of spoil, allowing cool air to enter the hole & regular inspection of teeth.

Item#	Item Name	Our Price	Qty	Add
DIGGA-DR6-12-3	Digga DR6 12 Inch Rock Auger	$1,765.00
DIGGA-DR6-14-3	Digga DR6 14 Inch Rock Auger	$2,025.00
DIGGA-DR6-16-3	Digga DR6 16 Inch Rock Auger	$2,350.00
DIGGA-DR6-18-3	Digga DR6 18 Inch Rock Auger	$2,775.00
DIGGA-DR6-24-3	Digga DR6 24 Inch Rock Auger	$2,995.00
DIGGA-DR6-30-3	Digga DR6 30 Inch Rock Auger	$3,850.00
DIGGA-DR6-36-3	Digga DR6 36 Inch Rock Auger	$4,495.00
DIGGA-DR6-06-3	Digga DR6 6 Inch Rock Auger	$1,325.00
DIGGA-DR6-09-3	Digga DR6 9 Inch Rock Auger	$1,665.00
