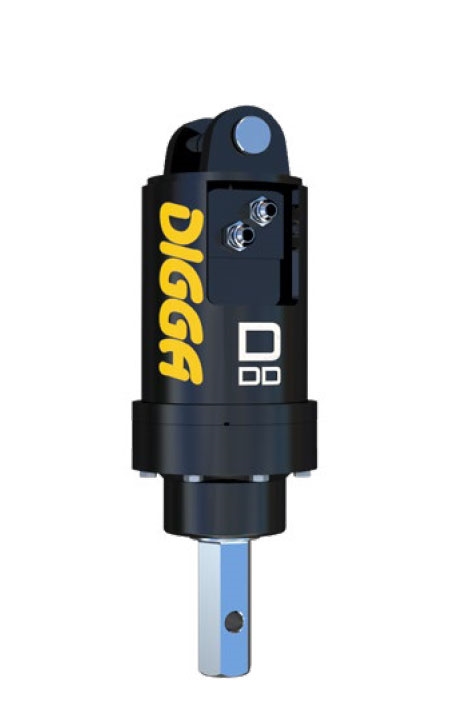

Digga DDD Universal Skid Steer Auger Drive Package - Single Speed - Direct Drive 4-12 G.P.M. Standard Flow

Single Speed - Suitable for Standard Drilling

Digga's drilling drives for agricultural machines are the ultimate in performance, quality and cost effectiveness. Over 30 years of design and development has produced the highest quality range of auger drives on the market today. Completely manufactured and assembled by Digga, using only the highest grade materials and strictest quality control. Fitted with Digga / Eaton bell motors and input housing, the innovative design allows the gearbox to go down the hole to maximise drilling depth without extentions, eliminating downtime and minimises maintenance, optimizing your returns.

PACKAGE PRICE INCLUDES 87" HOSES, FF QUICK DISCONNECTS, UNIVERSAL SKID STEER MOUNT, & LINKAGE. MOUNTING PLATE IS SPECIFIC TO MAKE AND MODEL OF SKID STEER. PLEASE SPECIFY WHAT MACHINE THE MOUNT IS ATTACHING TO. Auger sold separately.
SUITABLE AUGER - A4 & RC4, SUITABLE EXTENSION - XO20
	A4 Auger - General Purpose Earth Auger for Light Conditions RC4 Auger- Rock/Earth Combo Auger for Fracturable Rock/Earth/Clay/Shale

Features

• Compact high torque Digga manufactured gearbox
• Digga designed Eaton motor with integrated pressure relief valve eliminating the need for bulky
• valve blocks while reducing many potential leak points
• 2 Piece shaft design ensures maximum side load ratings without increasing load on bearings
• Lifetime shaft pull out warranty
• 5 year gear box and 3 year motor warranty
• Over 30 years design and manufacturing experience

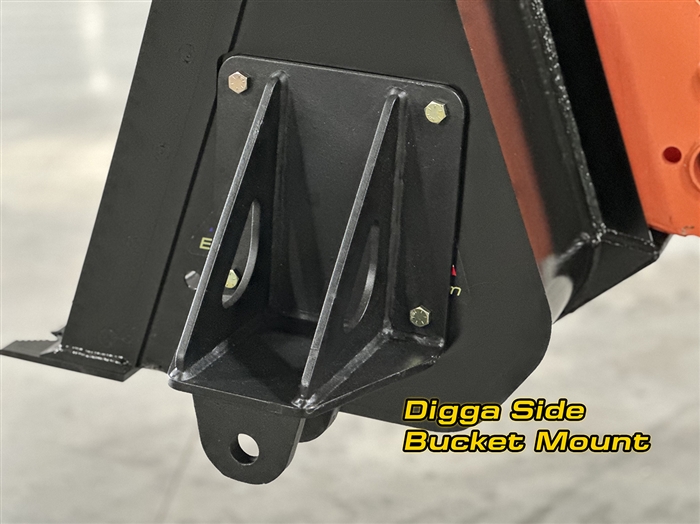

• PRICE INCLUDES SIDE SHIFTABLE UNIVERSAL MOUNT(OR COMPACT JD MOUNT) AND HOSES/COUPLERS

Auger Drive Specifications

(*) Max/min drilling diameter (DIA) dependent on ground conditions. Guide is a recommendation only.

GPM

RPM

PSI

FT-LBS

2

25

1,500

372

4

49

1,700

422

6

74

1,900

471

8

99

2,100

521

10

124

2,300

571

12

148

2,500

620
